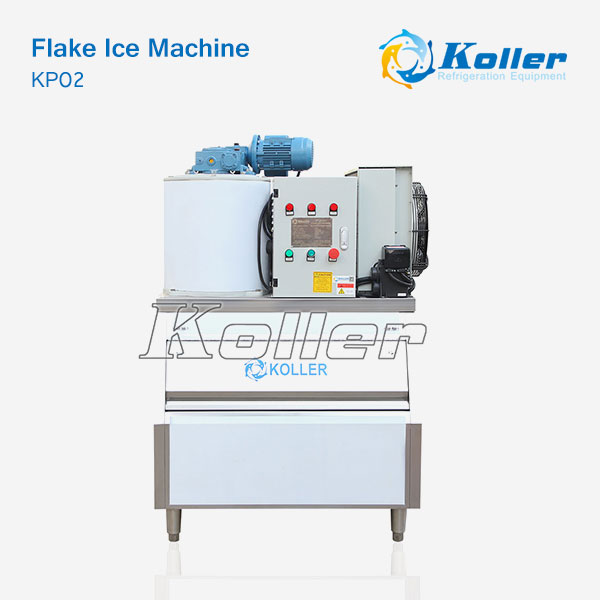

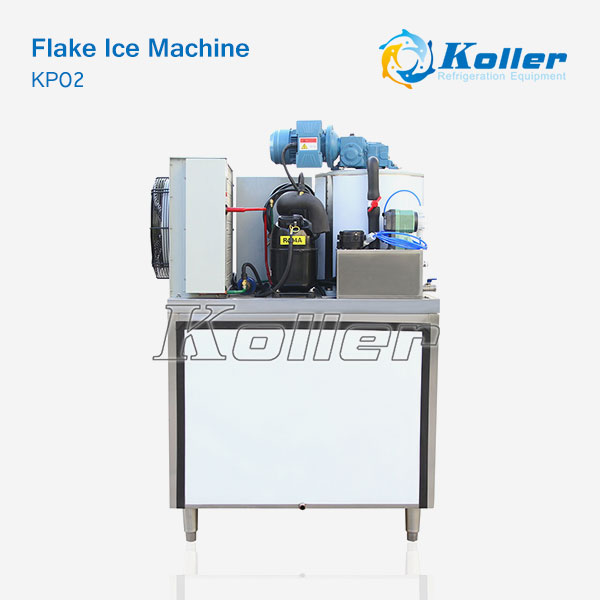

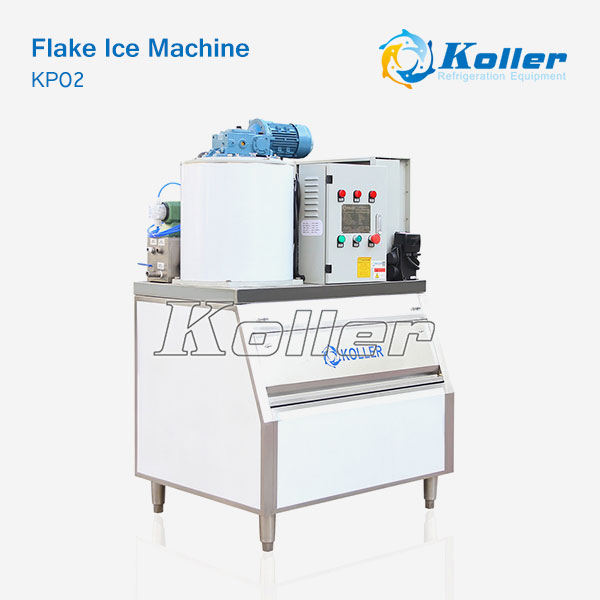

Flake Ice Machine KP02 (200kg/day capacity)

Koller small series flake ice machine is widely used in the supermarket and seafood restaurant to keep the food fresh such as fish, meat and chicken, etc.

● High-efficient heat transfer and low power consumption.
● Use PLC control system, with kinds of fault protection.
● Machine running stably with less faults, long lifetime.
● Use stainless steel 304 or carbon steel chrome for the evaporator drum.

Flake ice: dry, pure, powder-less, not easy to block, its thickness is about 1.8mm~2mm, without edges or corners which will protect the food during the processing period.

Application: refreshing vegetable, fruit, foodstuff in supermarket; blast cooling for processing of fishery products and butchery; cooling process in fermentation, dairy production; chemical dyes; cooling in concrete and mining.

Trading Terms: FOB, CIF, CNF, EXW
Payment Terms: T/T, L/C, Western Union, MoneyGram, by cash for offline orders.

◆ Refrigerant: R22/R404A

◆ Supply Power: 380V~420V, 50Hz/60Hz, 3P; 220V~240V, 60Hz, 3P; 440V~480V, 60Hz, 3P;

◆ Working Conditions: Input Water Temp: 21℃; Ambient Temp: 25℃; Evaporator temp: -20℃; Condensing temp: 40℃.

(Notice: the actual ice production will be changed with input water temp and ambient temp.)

◆ Koller reserve the final explanation to the products technique parameter, model and specifications can be subject to change without notice.

INSTALLATION

◆ Video guidance support.

◆ Online guidance and telephone guidance support. (English, French, Spanish, Arabic and Japanese)

◆ Field installation, commissioning and training if needed.

MAINTENANCE

◆ Reply within 24hours.

◆ Online guidance and telephone guidance support.(English, French, Spanish, Arabic and Japanese)

◆ Free component in one year warranty.

◆ Field maintenance and repair service if needen.
