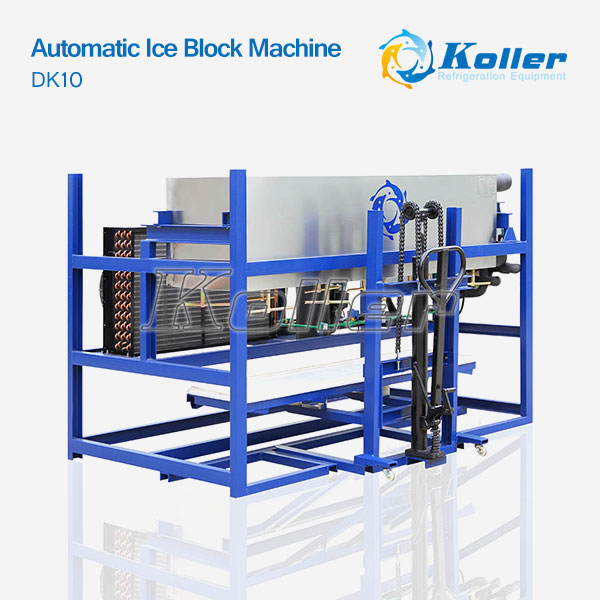

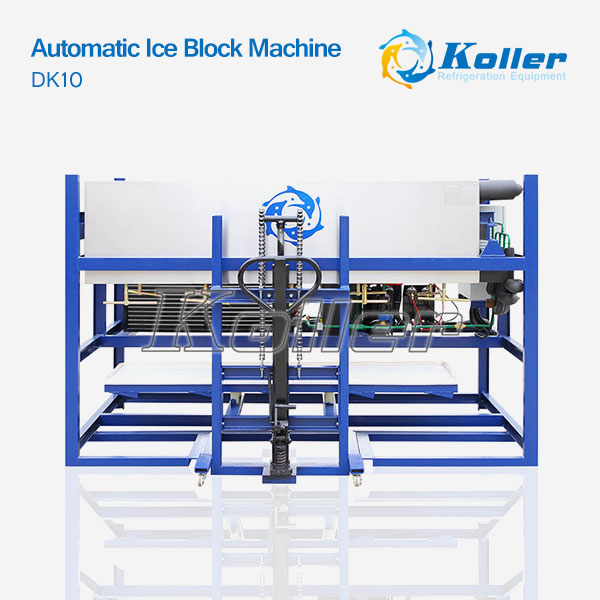

Automatic Ice Block Machine DK10 (1 ton per day Capacity)

Koller Automatic Ice Block Machine DK10 can produce 1000KG ice block in 24 hours. By adopting food grade quality Aluminum plate, the ice blocks produced by DK machine is very clean, edible and sanitary for human consumption, no harm on health.

Product Features

◆ Short and fast ice freezing time.

◆ Sanitary, clean and edible ice.

◆ Auto water adding, auto ice making and ice harvesting.

◆ Evaporated directly without salt water.

◆ Take less space, convenient to transport, low cost.

◆ Stainless steel mainframe, anti-rust and anti-corrosive.

Trading Terms: FOB, CIF, CNF, EXW

Payment Terms: T/T, L/C, Western Union, MoneyGram, by cash for offline orders.

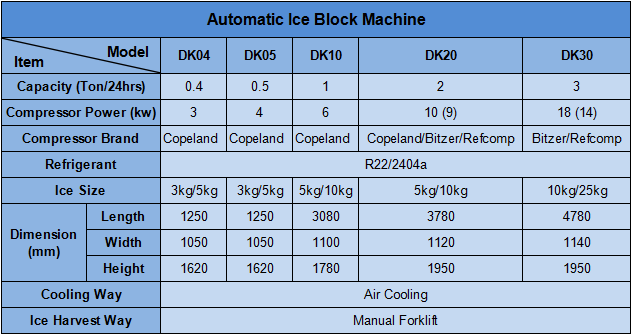

◆ Refrigerant: R22/R404A

◆ Supply Power: 220, 50Hz, 1P; 220, 60Hz, 1P; (For DK04/DK05 only)

380V~420V, 50Hz/60Hz, 3P; 220V~240V, 60Hz, 3P; 440V~480V, 60Hz, 3P;

◆ Working Conditions: Input Water Temp: 21℃; Evaporating Temp:- 15℃; Condensing Temp: 40℃;

(Notice: the actual ice production will be changed with input water temp and ambient temp.)

◆ Koller reserve the final explanation to the products technique parameter, model and specifications can be subject to change without notice.

INSTALLATION

◆ Video guidance support.

◆ Online guidance and telephone guidance support. (English, French, Spanish, Arabic and Japanese)

◆ Field installation, commissioning and training if needed.

MAINTENANCE

◆ Reply within 24hours.

◆ Online guidance and telephone guidance support.(English, French, Spanish, Arabic and Japanese)

◆ Free component in one year warranty.

◆ Field maintenance and repair service if needen.
